KIOXIA 070314
The KIOXIA 070314 is a 4Gbit1 flash NAND EPROM chip. This chip is a serial type and can do both commands and data using the same bus2.
Specifications
| Name | Specification value |
|---|---|
| Bus width | 8 Bit |
| Minimum Operating Temperature | 0ºC |
| Maximum Operating Temperature | 70ºC |
| Voltage Supply Input Minimum | 2.7 V |
| Voltage Supply Input Maximum | 3.6 V |
| Current Supply Input Maximum | 30 mA (50 uA on standby) |
| Read Cycle Time | 25 ns |
| Blocks Minimum | 2008 Blocks |
| Blocks Maximum | 2048 Blocks |

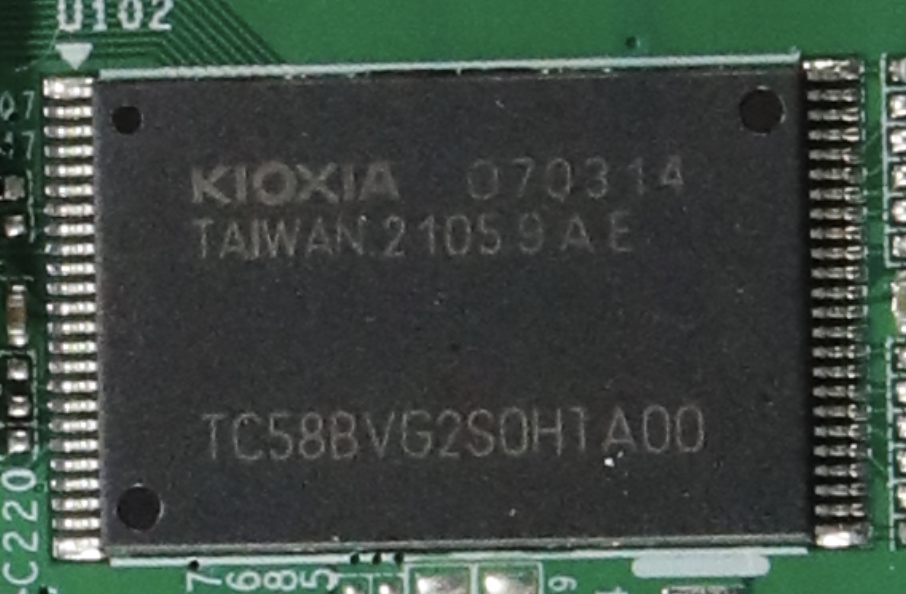

Numbers on chip
- 070314
- TAIWAN21059AE
- TC58BVG2S0HTA00
References
TC58BVG2S0HTA00 - Toshiba Semiconductor & Storage - Integrated Circuits (ICs) - IN STOCK - Hotenda.comThis link does work anymore.- Mouser electronics
Footnotes
-
TC58BVG2S0HTA00 Datasheet (Page 1). Toshiba Memory Corporation.
PDF↩ -
TC58BVG2S0HTA00 Datasheet (Page 1, DESCRIPTION). Toshiba Memory Corporation.
PDF↩ -
Kioxia America TC58BVG2S0HTA00 - Mouser. Mouser Electronics Inc.
WEB↩ -
TC58BVG2S0HTA00 Datasheet (Page 1, FEATURES). Toshiba Memory Corporation.
PDF↩
